JSF 2 – evaluation and test

Introduction

JSF is a standard to implement Java based web framework. There is
a reference implementation of the standard, Mojarra JSF, which
provides the request processing and a set of basic components. JSF is
component oriented and as such it brings the concepts of desktop
application development to web application.

JSF 2 introduces a number of new features. It provides a
standardized mechanism to support Ajax, input validation using
annotations (JSR 303), facelets as default rendering engine and a
couple of more features required by modern web application.
The standard implementation does only provide basic components
which mirror the standard HTML input components but one idea of the
standard is that other companies can provide component libraries with
advanced widgets like trees, grids etc. There are a number of third
party component libraries like ADF Faces, Trinidad, ICEFaces,
PrimeFaces, RichFaces, NetAdvantage, JViews and many others.

We have tested a snapshot of 2.0.0 of the reference implementation
(Mojarra) which is released under the Common Development and
Distribution License (CDDL) + GPLv2 and JSF is open source. This
version is of course not yet stable, but I will friendly overlook the
existing bugs in this evaluation.

The test took place from July to
November 2009.

Website <https://javaserverfaces.dev.java.net/>

The tester are Holger Brade, independent software developer at
Munich, Germany and me, Sebastian Hennebrueder, independent software
developer and trainer for Hibernate and JPA at Frankfurt, Germany.

Tools

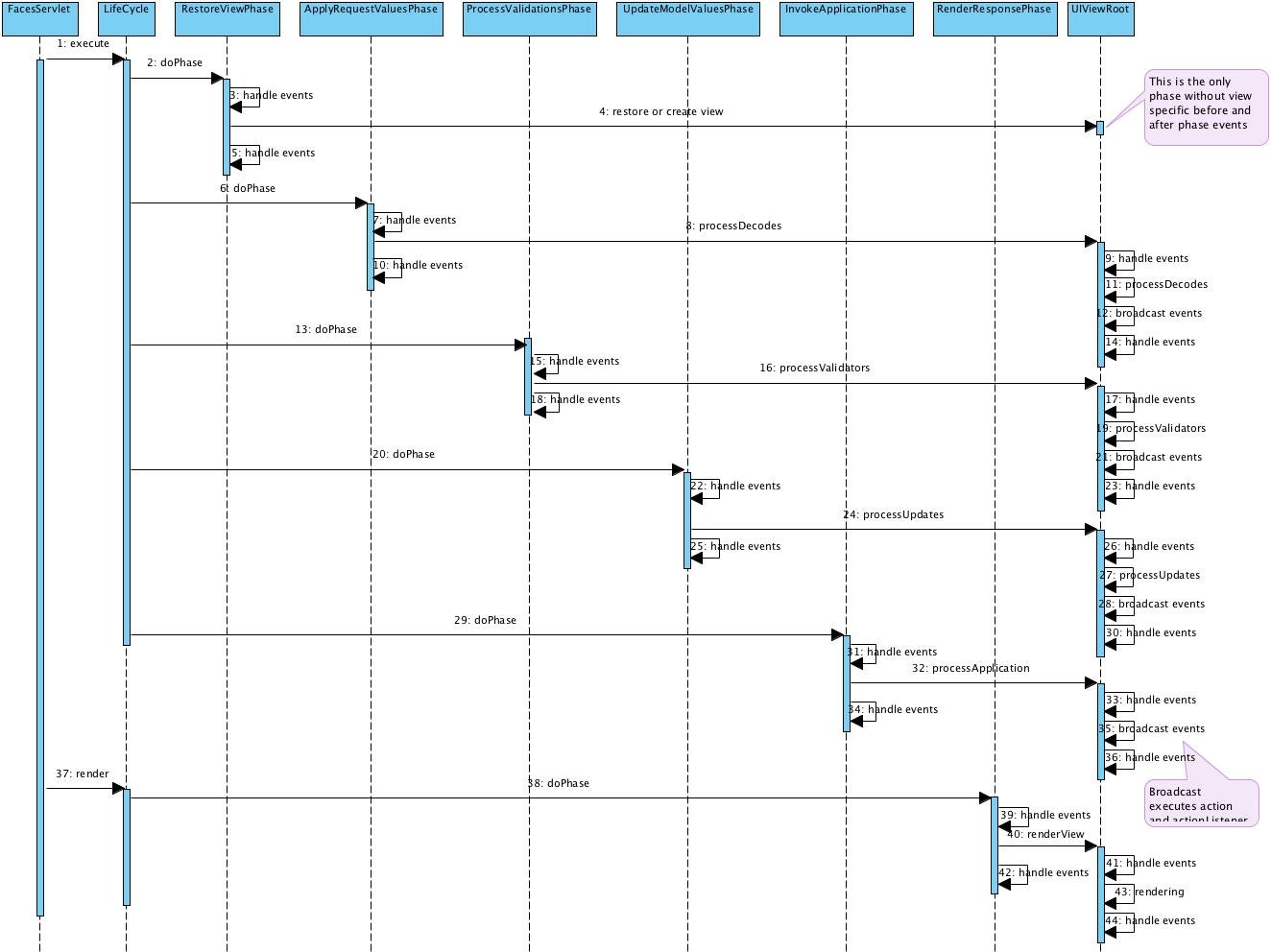

I used Visual Paradigm to create the sequence diagrams. It is a quite powerful UML solution with support for Java round trip engineering. It detects JPA and Hibernate entities as well. <http://www.visual-paradigm.com/>

Table of Content

• 1 Introduction 1
• 2 Hello world 2
• 3 Discussion 5
• 3.1 Architecture 5
• 3.2 Dependencies and libraries 17
• 3.3 Flow of development 17
• 3.4 Popularity and contributor distribution 17
• 3.5 Sebastian’s opinion on the framework 17
• 3.6 Holger’s opinion 22
• 3.7 The community’s opinion – beautiful features and concepts 23
• 4 Features 23
• 4.1 Render / page technologies 23
• 4.2 Developer comfort 23
• 4.3 Ajax support 24
• 4.4 Security 25
• 5 How do I do …? 26
• 5.1 Navigation 26
• 5.2 Friendly URLs 29
• 5.3 Templates 32
• 5.4 Forms and validation 33
• 5.5 Common dialog tasks 40
• 5.6 Message resources and internationalization 43
• 5.7 Exception handling 45
• 5.8 Redirect on post and flash scope 47
• 5.9 Conversation context, wizards and workflows 47
• 5.10 Double submit handling 52
• 5.11 Custom components 52
• 6 Performance and scalability 61

Hello world

The hello world application intends to show how complex it is to
setup a simple application. It renders an index page with a link.
Following the link calls an action of the framework and stores a
localized message. The user is send to a view displaying this
message.
You can download the sample project helloworld at
<http://www.laliluna.de/download/framework-evaluation-samples.zip>

Requirements:

A servlet engine or an JEE application server like Jetty, Tomcat
or Glassfish. The example was successfully tested with Jetty 6.21,
Tomcat 6.0.14 and Glassfish v3-preview.

Required steps

Create a new web application.

Add the following libraries to the build path of the web
application.

• jsf-api-2.0.0-SNAPSHOT.jar
• jsf-impl-2.0.0-SNAPSHOT .jar
• jstl 1.2 (might be removed)

The deployment approach for JSF libraries is slightly picky.
Glassfish provides already JSF 2 libraries. You may need to update
them using the update mechanism of Glassfish. Just search for
‘glassfish JSF2’ to find more information.

Jetty 6 requires that the libraries are copied to
JETTY_HOME/lib/ext/ You may create a subdirectory as well. Sample:
JETTY_HOME/lib/ext/jsf-2.x/

Tomcat 6 is fine, if you deploy the libraries with your web
application. They can be added to the WEB-INF/lib folder of the
deployed WAR archive.
You have to provide the JSTL library even if you don’t use it.

Modify the web.xml

The Servlet class FacesServlet starts the JSF request processing
life cycle and must be defined in the web.xml. The servlet mapping
tag defines the for which URL the FacesServlet should be executed.
The pattern /faces/* is commonly used by the JSF specification but
any other prefix or extension is possible. The example uses as
web-app attribute version=“2.5” this means we are using
servlet-api version 2.5. If you use tomcat 6 we need minimum
servlet-api in version 2.5. Compared with jsf 1.2 nothing changed in
this example.
Below you can see the web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee web-app_2_5.xsd"
version="2.5">
  <context-param>
    <param-name>javax.faces.STATE_SAVING_METHOD</param-name>
    <param-value>client</param-value>
  </context-param>
<display-name>HelloWorld with JSF RI 2 (Beta 2)</display-name>
<servlet>
<display-name>FacesServlet</display-name>
<servlet-name>FacesServlet</servlet-name>
<servlet-class>javax.faces.webapp.FacesServlet</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>FacesServlet</servlet-name>
<url-pattern>/faces/*</url-pattern>
</servlet-mapping>
</web-app>

Create a resource file

The resource bundle for messages is stored in the file
message.properties in the java package
de.laliluna.examples.jsf2.

Add a message for the key hello_world.

hello.world=Hello world

<?xml version='1.0' encoding='UTF-8'?>
<faces-config xmlns="http://java.sun.com/xml/ns/javaee"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-facesconfig_2_0.xsd"
    version="2.0">
  <application>
    <locale-config>
      <default-locale>en</default-locale>
      <supported-locale>de</supported-locale>
      <supported-locale>en</supported-locale>
    </locale-config>
    <resource-bundle>
      <base-name>de.laliluna.examples.jsf2.message</base-name>
      <var>m</var>
    </resource-bundle>
  </application>
</faces-config>

Navigation

In JSF 1.2 navigation rules were explicitly defined in the
faces-config.xml. In JSF 2 we have an alternative: the implicit
navigation. An outcome value like ‘response’ is automatically mapped
to the file /response.xhtml.

The hello.xhtml is the first page we see. It displays a link

<?xml version="1.0" encoding="UTF-8"?>
<html xmlns="http://www.w3.org/1999/xhtml" lang="en"
xmlns:h="http://java.sun.com/jsf/html"
xmlns:f="http://java.sun.com/jsf/core"
xmlns:ui="http://java.sun.com/jsf/facelets">
<head>
<title>Simple JSF 2 example (start)</title>
</head>
<body>
<h:form id="form">
<h:commandLink action="#{sampleBean.storeMessage}">Go to hello world</h:commandLink>
</h:form>
</body>
</html>

The input form is posted and the action storeMessage of the
class SampleBean is executed. It stores the message and
returns the outcome ‘response’. JSF will render the page
response.xhtml.

@ManagedBean
public class SampleBean {
  private String message;
  public String storeMessage(){
    FacesContext context = FacesContext.getCurrentInstance();
    ResourceBundle bundle = context.getApplication().getResourceBundle(context, "m");
    message = bundle.getString("hello_world");
    return "response";
  }
  public String getMessage() {
    return message;
  }
}

The response.xhtml looks like

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
  xmlns:h="http://java.sun.com/jsf/html"
  xmlns:f="http://java.sun.com/jsf/core">
<head>
  <title>Simple JSF 2 example (response)</title>
</head>
<body>
  Message: #{sampleBean.message}
</body>
</html>

That’s it.

Discussion

Architecture

Components

JSF is a component oriented framework. A page or better a view (to
use the JSF terminology) doesn’t consist of text but of components.
Below you can see a sample view.

<?xml version='1.0' encoding='UTF-8' ?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
 "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/"
    xmlns:ui="http://java.sun.com/jsf/facelets"
    xmlns:h="http://java.sun.com/jsf/html"
    xmlns:l="http://www.laliluna.de/components/sample">
<head>
  <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
  <title>Facelets - Template Example</title>
</head>
<body>
  <div><l:hello /></div>
  <h:form>
    <h:inputText value="#{inputBean.text}"/>
    <h:commandButton actionListener="#{inputBean.logText}" value="Send" />
  </h:form>
</body>
</html>

The view is parsed and a tree of components is created. Below you can
see a simple component tree.

javax.faces.component.UIViewRoot
- com.sun.faces.facelets.compiler.UIInstructions
- com.sun.faces.facelets.compiler.UIInstructions
- de.laliluna.howto.components.MyHelloComponent
- com.sun.faces.facelets.compiler.UIInstructions
- javax.faces.component.html.HtmlForm
-- javax.faces.component.html.HtmlInputText
-- javax.faces.component.html.HtmlCommandButton
- com.sun.faces.facelets.compiler.UIInstructions

Every component extends UIComponent. To be more precise in JSF 2 it
is recommended to extend UIComponentBase which extends UIComponent

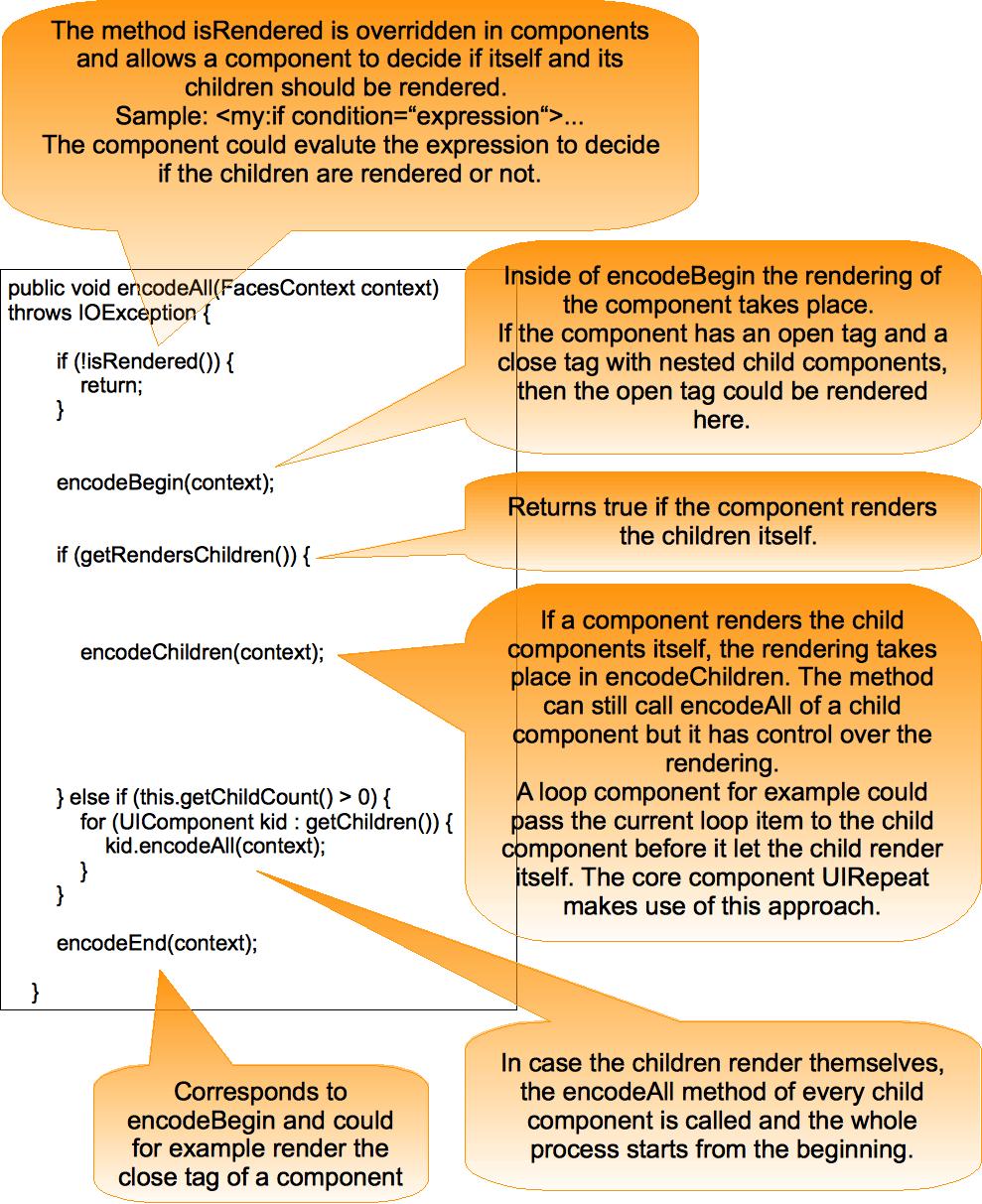

and provides a number of utility methods. When the view is rendered,
JSF asks the root component to render itself, which in return will
ask all of its child components to render themselves. The whole tree
is traversed to render the response. You will find more details on
the rendering later in this article.

Behaviours for components

JSF 2 introduces the concept of
behaviours. You may think of the ‘Strategy pattern’, which separates
behaviour from a class and allows to interchange the behaviour
afterwards. In JSF 1.x existed a kind of behaviour as well. You can
add a converter or a validator to a input field.
Sample for input field which expects a
date and convert the input value to an instance of the class Date.

 <h:inputText value="#{inputBean.moved}">
  <f:convertDateTime dateStyle="short" type="date"/>
</h:inputText>

The concept is now improved with a more neutral named ClientBehavior
interface. The idea is to add client side JavaScript and JavaScript
to a component. This allows to transform a input field to an
autocomplete field or a calendar input.

Lifecycle

The processing of a request is called lifecycle in JSF. There are
different phases which are executed one after the other. If you
prefer design pattern terminology it is a ‘Chain of responsibilities.
A simple GET request has a shorter lifecycle. It the GET fetches a
CSS, JavaScript, image or other content which is provided as a
resource (see resource handling later in this article), then the data
is immediately delivered.

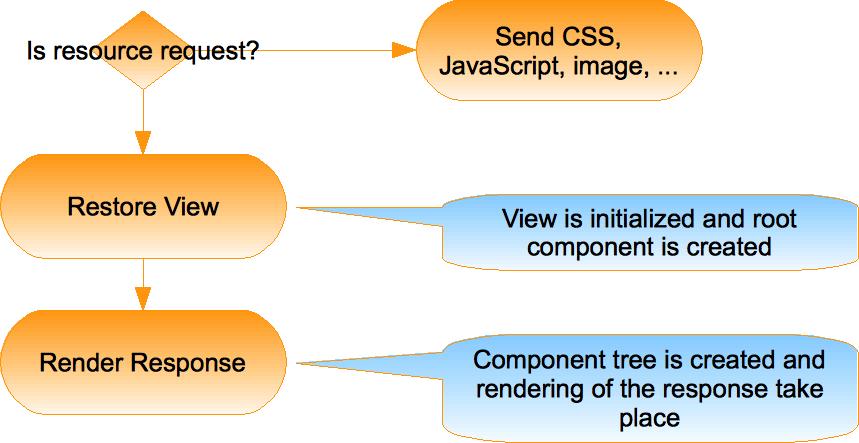

If the request is for a facelet which doesn’t have any parameters,
then two phases are needed as shown in the following diagram.

Before and after every phase events are created to allow event
listener to execute. We will have a closer look at events later.

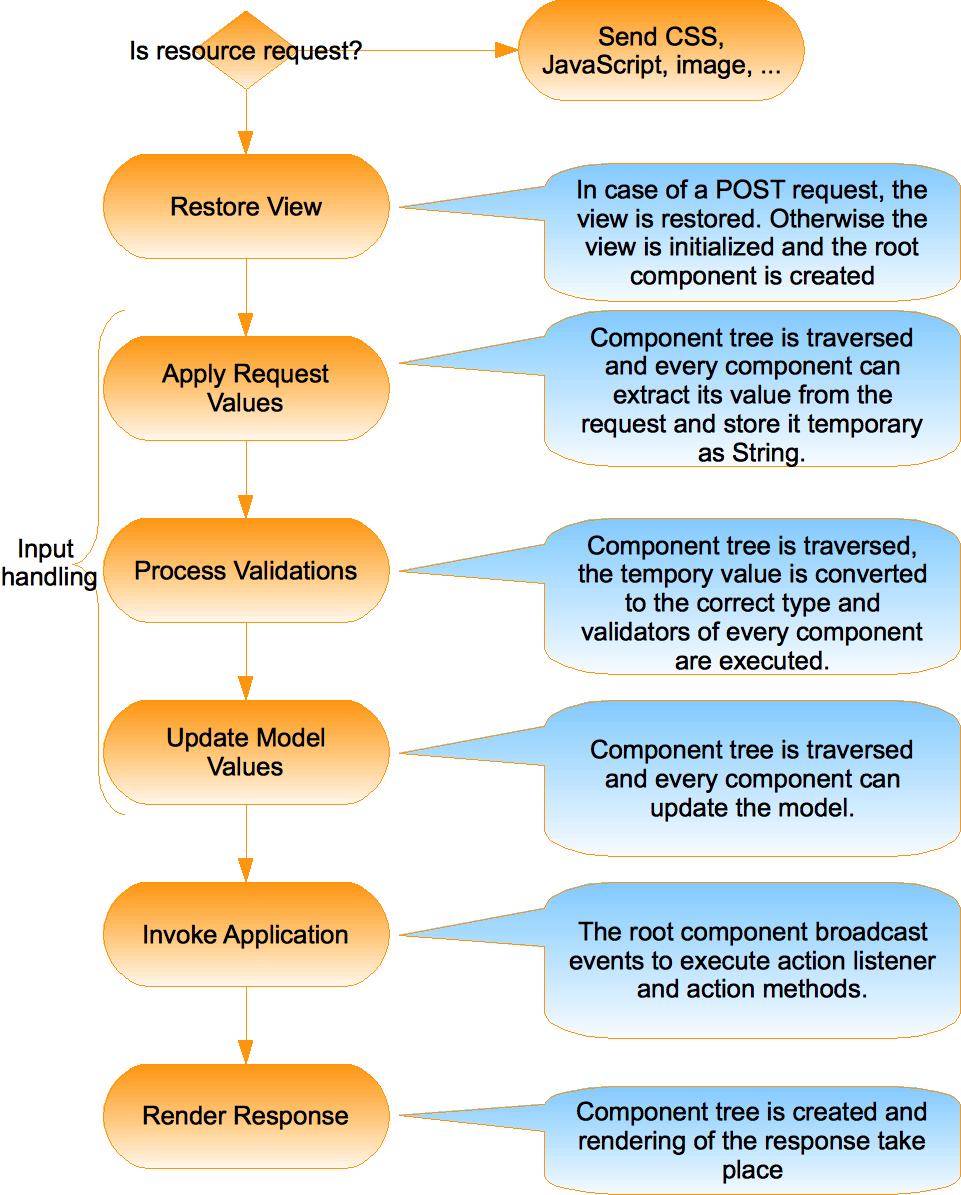

The lifecycle of a GET request with parameter or of a POST request
has a number of more phases, which either deal with input parsing,
converting and validating or with calling of action and action
listener. You can find the diagram below.
There are three phases which deal with input handling:

• Apply Request Values
• Process Validations
• Update Model Values

A component which does not expect any input will do nothing during
this phases. But a component which expects input will extract the
value from the request during the Apply Request Values Phase
and store it as String value. If the validations for the input
value fails in the validation phase, then this extracted value will
be redisplayed.
In the Process Validations Phase the submitted value is
converted from String to the expected type. Than all validators are
executed. If a validation fails, the processing is stopped after the
validation phase and the processing continues with the Render
Response Phase. If the validation was successful the processing
continues with the Update Model Values Phase.
In the Update Model Values Phase the model is updated. For
example the input text field

 <h:inputText value="#{inputBean.text}"/>

will update the field text of the managed bean inputBean.
JSF offers a base class to be used for components which expects
user input: UIInput.

The phase Invoke Application will
broadcast the InvokeApplication event. This means that the
action listener and the action methods are called. Action listener
are called first. The following command link will call the action
listener foo and the action method bar. The difference
between the two is that the action method can influence the
navigation flow. It returns a String which represents an navigation
outcome.

<h:form>
  <h:commandButton actionListener="#{aBean.foo}" action="#{aBean.bar}" value="Send"/>
</h:form>

The following picture shows the complete lifecycle of JSF.

Every phase can set the boolean flags
renderResponse or responseComplete. RenderResponse will
short circuit to the Render Response Phase. ResponseComplete
stops the processing completely. The renderResponse flag is
for example used during the Validation Phase in case the
validation failed.

Facelets support now partial view rendering for an Ajax request. If
the Ajax request asks only to re-render a specific component, then an
extract of the component tree can go through the lifecycle and render
itself.

Site note: There are different options
to short circuit the processing with immediate attributes for buttons
and links. I don’t want to detail this in this short introduction.

Restoring and saving state

Restoring and saving state is actually part of the lifecycle but
it is slightly complex and I would like to explain it in more detail.
A component can save its state. State includes for example the
value of attributes. The next request can restore the state. For
example, a table component can store the rows, columns and the
selected rows. The next POST request will restore the state and now
you can easily detect if the selected row has changed. The state is a
snapshot of the component tree taken after the response was rendered.

The state can be stored on the client as hidden field, which is
automatically added to all forms or alternatively on the server in
the user session. The first approach has the advantage that no memory
is consumed on the server but the amount of data send around with a
form submit will increase. The length of the hidden field value grows
with the amount of saved state.
Using JSP as rendering technology follows the approach of JSF 1.x
which stores the full component tree. Facelets follows a different
approach. It creates the component tree from the template and then
applies the saved state to the component tree. This approach is
called partial state saving. The size of this partial state is a lot
smaller as compared to full state saving. The tradeoff is that the
restoring of the state takes longer.
The chapter which explains how to write a component, explains how
to implement partial state saving.

Events

From a conceptual point of view, JSF looks like a desktop
application. There are components and events. Components can create
events and can react (or listen) to events. The event concept of JSF
is not simple because there are a lot of different events and there
are a lot of places where events are actually created.
I will try to make this chapter the simplest guide to JSF events.
There are three types of events:

• System events
• Phase events
• Application events.
  System and phase events are both created by JSF independent of
  your application.

Phase events

Phase events are coarse grained. They are broadcasted before and
after every phase. A use case for a listener of a phase event is for
example a security framework. You can use phase listener to check
access before a phase is entered. A phase listener can stop the
lifecycle processing by setting the flags renderResponse or
responseComplete . Both have been explained in the lifecycle
paragraph.
You can register global phase event listener and per view phase
event listener. Global phase listener are executed for all requests
whereas per view listener only for a request of the specific view.

Here is an example for a global phase event listener. It is
configured in the faces-config.xml.

 <faces-config ...>
  ...
  <lifecycle>
    <phase-listener>
      de.laliluna.howto.services.GlobalPhaseListener
    </phase-listener>
  </lifecycle>

You can add global phase listener programmatically as well. The Lifecycle provides methods to add and remove phase listeners.

LifecycleFactory lifecycleFactory = (LifecycleFactory)
FactoryFinder.getFactory(FactoryFinder.LIFECYCLE_FACTORY);
Lifecycle lifecycle =
    lifecycleFactory.getLifecycle(LifecycleFactory.DEFAULT_LIFECYCLE);
lifecycle.addPhaseListener(new GlobalPhaseListener());

Phase listener can be added per view as well. Just add the following
tag to the page.

 <f:phaseListener type="de.laliluna.howto.services.PerViewPhaseListener" />

Alternatively you can add such a listener programmatically. You need
to extract the root component from the FacesContext and call addPhaseListener

 viewRoot.addPhaseListener(listener);

There are two limitations for view specific phase listener. First, as
the view needs to be created for a per view phase listener, you
cannot get any events for the RestoreViewPhase . Second, a GET
request to a page, which expects parameters, does only trigger the
RenderResponse phase events.
A phase listener is just a class implementing the PhaseListener
interface. The method getPhaseId returns a value which
specifies in which phase the listener is called.

package de.laliluna.howto.services;
import javax.faces.event.PhaseEvent;
import javax.faces.event.PhaseId;
import javax.faces.event.PhaseListener;
public class PerViewPhaseListener  implements PhaseListener {
  private Logger logger = Logger.getLogger(PerViewPhaseListener.class.getName());
  public void afterPhase(PhaseEvent event) {
    logger.info("per view phase listener, after: "+event.getPhaseId());
  }
  public void beforePhase(PhaseEvent event) {
    logger.info("per view phase listener, before: "+event.getPhaseId());
  }
  public PhaseId getPhaseId() {
    return PhaseId.ANY_PHASE;
  }
}

System events

System events is an innovation of JSF 2. Those events are created
at various moments of application or request lifetime.
There are system events which are global and others which are
related to a component. Event listener can be configured in the
faces-config.xml, programmatically or using annotations.
In the following sample you can see an event listener, which is
called after the application has started and JSF finished the
configuration, and an event which is executed before the application
is shutdown.

 <faces-config ...>
  <application>
    <system-event-listener>
      <system-event-listener-class>
          de.laliluna.howto.services.StartUpConfiguration
      </system-event-listener-class>
      <system-event-class>
          javax.faces.event.PostConstructApplicationEvent
      </system-event-class>
    </system-event-listener>
    <system-event-listener>
      <system-event-listener-class>
          de.laliluna.howto.services.StartUpConfiguration
      </system-event-listener-class>
      <system-event-class>
          javax.faces.event.PreDestroyApplicationEvent
      </system-event-class>
    </system-event-listener>
  </application>

An example to register a system event listener programmatically:

Application application = FacesContext.getCurrentInstance().getApplication();
application.subscribeToEvent(PreRenderViewEvent.class, new MySystemEventListener());

For components and renderer the system event listener can be
registered using annotations as well:

@ListenerFor(systemEventClass = PreRenderViewEvent.class)

A final option is to configure the event listener inside of the
template. The <f:viewParam> is a component which writes
a request parameter into a managed bean variable. The *preRenderView

• event will trigger execution of the load method, which will load
  an article for the given id.

<f:metadata>
 <f:viewParam id="id" name="id" value="#{articleBean.id}"/>
 <f:event type="preRenderView" listener="#{articleBean.load}"/>
</f:metadata>

There are about 16 different system
events. You can easily find them by looking for sub classes of
javax.faces.event.SystemEvent .

System event listener are fine grained
compared to Phase listener. Some are related to new features of JSF 2
(sample: PreDestroyCustomScopeEvent ), some let you control
behavior of your components.

Application events

Application events are created by your components. JSF 1.x had two
types of FacesEvents:

• ValueChangeEvent
• ActionEvent

The event ActionEvent is used by the component class
UICommand , which is the base class for the command link,
command button etc. The event is queued during the ApplyRequestValue
phase. Later in the InvokeApplication phase, the events are
broadcasted and action methods and listener are executed.
The event ValueChangeEvent is queued, if the validation of
user input was successful and the value has changed. It is
broadcasted during all following phases.
JSF 2 add events related to behaviors and Ajax ( BehaviorEvent,
AjaxBehaviorEvent). Both events are used in the new component
behavior concept. The concept allows to add behavior to existing
components. An input field may offer autocomplete values or react to
the browsers onBlur event.

Technical details

The following diagram shows all places where events listener are
called. The diagram is slightly simplified. The FacesServlet is the
entry point of the JSF application. It calls the lifecycle, which in
return executes the different phases. Every phase calls global phase
event listener before and after the actual work is done. Sample: 3
and 4 in the RestoreView phase.
PhaseEvent listener can be defined per view as well. These
listener are called by the root component, UIViewRoot. This happens
in the diagram for example at 9 and 14.
FaceEvents (alias Application events) are broadcasted by the
UIViewRoot component. This happens in every phase. Sample: 12, 21,
28.

System events are broadcasted immediately at various points in
JSF. Just search the source code for publishEvent.

An interesting point of event broadcasting is number 35. The event
broadcasting will as well call all action listener and action
methods.

Managed Beans

Managed Bean are the key player in your web application. They can
receive input values, provide data for output and provide action
listener and action methods. Action methods can influence the
navigation where as action listener cannot. In most applications
managed bean are the bridge between the web application and the
business logic.

Managed Beans are managed by JSF. They are instantiated and stored
in a context. There are different contexts. JSF calls them scopes:
Session, Request, View, etc.

The following is an example for a managed bean with session scope.
It increments a counter showing how often it was called during the
current user session.

package de.laliluna.howto.beans;
import javax.faces.bean.ManagedBean;
import javax.faces.bean.SessionScoped;
import java.util.concurrent.atomic.AtomicInteger;
@ManagedBean
@SessionScoped
public class SessionScopeSample {
  private AtomicInteger count = new AtomicInteger();
  public int getCount() {
    return count.getAndAdd(1);
  }
}


The template contains the following code

In the user session, you have called ‘getCounter’ of the SessionScopeSample bean #{sessionScopeSample.counter} times.

The first time, you visit the page an instance of SessionScopeSample is created and stored in the session scope. In
subsequent calls JSF gets the instance from the session scope and
reuse it.
Scopes are Application, Session, View, Request and None.

None will create a new managed bean every time it
is used. The View scope lifecycle is started when entering a view
with a GET request. If you reload the page a new view scope is
started. If you send a POST request the old view is restored and the
view scope is reused. The view scope is destroyed if an action method
sends you to another view.
At the time of writing it was unclear
what happens if you leave the page with a GET request without a call
to an action method. The other scopes correspond to their servlet
spec equivalents.

Very interesting are custom scopes.
This is a new feature of JSF 2 and let you build for example a wizard
scope to be used, if you want to build your own dialog wizard or a
scope to integrate a business process engine.

Managed beans can be configured using
annotations and XML in the faces-config.xml .

Another feature of managed beans is
configuration of a managed bean. You can set properties to values or
inject other managed beans. You can only inject beans with a longer
lifetime into another managed bean. Managed beans are in fact a
simple form of an Inversion of Control container.

 @ManagedBean @RequestScoped
 public class RequestScopeSample {

  @ManagedProperty("foo is foo")
  private String foo;

  @ManagedProperty("#{viewScopeSample}")
  private ViewScopeSample viewScopeSample;
   // setters are omitted here for brevity BUT are REQUIRED for injection
 }

If you use JSF inside of a JEE container you can inject resources,
session and message driven beans and webservices into your managed
beans.
A final feature of managed beans are
listeners to lifecycle events. You can react to the creation and the
destruction of a managed bean.

 public class RequestScopeSample {
  @PostConstruct
  public void postCreate(){
    logger.info("RequestScopeSample bean is created");
  }
  @PreDestroy
  public void preDestroy(){
    logger.info("RequestScopeSample bean is destroyed");
  }
}

Extension points

JSF offers a variety of extension points. The most important
extension points are the classes
javax.faces.application.Application and javax.faces.FactoryFinder,
phase listener and custom component.

The Application class is a central class in JSF. It
provides access to most information of an JSF application, for
example: resource bundles, navigation handler, action listener,
supported locales etc. There is only a single instance per
application. It can be configured by entries inside of the
<application/> tag in the faces-config.xml. The chapter
User-friendly URLs contains an example
The Application class and mainly everything else in JSF is
created by factories.

Factories can be located by a factory finder.
The FactoryFinder class is a final class which provides access
to about 10 different factories. Every factory can be replaced with a
custom factory. The configuration takes place inside of the
<factory..> tag in the faces-config.xml .
Factories create for example the FacesContext, a class holding all
information relevant to a request. In addition there is an exception
handler factory, which allows to customize the exception handling
(see chapter exception handling), there is a lifecycle factory which
allows to customize the creation of the JSF lifecycle.
Phase listener is another option to integrate customized
functionality in JSF. It can be used to integrate code that is
executed before and/or after a specific phase.

The final option are custom components. Components are elements
used in templates. There are visual components displaying for example
input forms and fields and non visual components, which are used to
configure validation methods, view parameters or view specific event
listener.

How to integrate a business layer?

We have discussed already that Managed Beans are the bridge
between a JSF application and the business logic.
The simplest way to access your business services is to implement
a ServiceFactory which creates your business services.

@ManagedBean @RequestScoped
public class ArticleBean {
// ...
  public void load(){
    if(id == null)
      return;
    ServiceFactory factory = ServiceFactoryImp.getInstance();
    ArticleService articleService = factory.getService(ArticleService.class);
    article = articleService.findById(id);
  }
}

This approach is not very comfortable. It would be a lot nicer, if we
can inject a service using an annotation.

  @ManagedProperty(value = "#{articleService}")
// or like this: @Inject
  private ArticleService articleService;

  public void load(){
    if(id == null)
      return;
    article = articleService.findById(id);
  }

The good message: If you use EJB 3 and implement your business logic
using session beans, then the problem is already solved. You can
inject sessions beans using the @EJB annotation.
How do we solve this for Inversion of Control / Dependency
Injection Frameworks like Google Guice, Hivemind, Pico Container or
the Spring framework? The approach is pretty much the same for all
frameworks. We just need to provide our own
expression-language-resolver. The resolver finds and creates objects
referenced in EL-expressions like #{articleService}. Google
Guice and the Spring Framework already provide a resolver. In order
to show all required steps, I will not use one of those finished
solutions but show the integration of the Framework Pico Container.

A quick site note on EL resolution:
An EL-resolver provides a method getValue(ELContext elContext,
Object base, Object property) to resolve an expression. An
expression like #{foo.bar.baz} is split into its parts and
resolved step by step. GetValue is first called for the
property foo with a base value of null. If foo resolves to an object, then the method is called with this object
as base value and bar as property value. In the last step, the
resolved value of bar is used as base value and baz as
property value.

Now, let’s create our own resolver. First, we need to tell JSF
that it should add our resolver in addition to the default resolvers.
Add the resolver to the faces-config.xml .

 <faces-config ...>
  <application>
  <el-resolver>de.laliluna.howto.application.PicoBeanELResolver</el-resolver>
  ...

Then you need to implement your own resolver. It must extend the
class javax.el.ELResolver. There are 6 methods to override.
The following four are important.

• getValue – is called when a property is resolved
• setValue – is called when a value is assigned to an expression, a Inversion-Of-Control container will not allow this in
  most cases
• isReadOnly – returns true, if a resolved value is read
  only. As resolved business services are read only, we return true,
  if we can resolve a bean
• getType – is called before setValue is called. It
  returns the type which can be assigned to an expression. We need to
  implement it but it is in fact never used, as we support only read
  only values.

Here is an extract of the source code

package de.laliluna.howto.application;
import de.laliluna.howto.services.PicoObjectProvider;
import org.apache.log4j.Logger;
import javax.el.ELContext;
import javax.el.ELResolver;
import javax.el.PropertyNotFoundException;
import javax.el.PropertyNotWritableException;
import java.beans.FeatureDescriptor;
import java.util.Iterator;

public class PicoBeanELResolver extends ELResolver {
  private static Logger logger = Logger.getLogger(PicoBeanELResolver.class);

  public PicoBeanELResolver() {
    // init the Picocontainer
//    It is better to add a startup listener instead of doing this here !!!!
    PicoObjectProvider.getInstance().startUp();
  }

  public Object getValue(ELContext elContext, Object base, Object property) {
    // the resolver resolves only names without prefix.
    if (base != null) {
      return null;
    }
    if (property == null) {
      throw new PropertyNotFoundException("Could not resolve property, as property name is null");
    }
    PicoObjectProvider provider = PicoObjectProvider.getInstance();
    Object result = provider.provide(property.toString());
    if (result != null) {
      elContext.setPropertyResolved(true);
    }
    return result;
  }

  public Class<?> getType(ELContext elContext, Object base, Object property) {
    Object value = getValue(elContext, base, property);
    return value != null ? value.getClass() : null;
  }

  public void setValue(ELContext elContext, Object base, Object property, Object val) {
    Object value = getValue(elContext, base, property);
    if (value != null) { // should never happen, as readonly returns true
      throw new PropertyNotWritableException("Objects resolved by the Pico Container are not writable");
    }
  }
  public boolean isReadOnly(ELContext elContext, Object base, Object property) {
    return getValue(elContext, base, property) != null;
  }
// ...

That’s it.
An alternative approach to managed bean is to create the managed
bean already by the Inversion of Control Framework. This approach is
used by the Spring Framework or the Web Beans JSR. The advantage is
that the managed bean can be a part of the lifecycle of the IOC
container and integration of advanced scopes like wizards, workflows
etc are simpler. A disadvantage of such an approach is that the web
and the business layers start to flow into each other and make it
harder to test the business layer independently.

Dependencies and libraries

JSF 2 requires only 3 libraries

• JSF API
• JSF implementation
• JSTL 1.2

You need JSTL even if you use only facelets.
The ‘Hello World’ example stated some application server specific
deployment requirements.
If you want to use Bean Validation (see below), then you
will need the two additional JARS.
If you use a component library like MyFaces, ADF, Richfaces,
Icefaces etc then you will need those additional libraries.

Flow of development

Building a new dialog normally requires a new facelet page to be
created, a new managed bean and in some cases a new navigation rule
in the faces-config.xml. Most
changes requires a reload of the application. Exception to the rule
are facelets page changes, and changes inside of a Java class method.
You can improve the development speed by using Groovy instead of Java
to implement components and managed beans. Have a look at the groovy
chapter of this article.

Popularity and contributor distribution

Google pages on JSF 2: about 7,000,000
Books: Currently none but there are
quite some books in preparation

Number of mails on mailing list per
month: 750 (as JSF is only a standard and Mojarra is only one
implementation, this is not the number of all discussions on JSF.
Every component collection has its own website.)
Number of core developer, regular
patcher/contributors

The numbers are hard to estimate and
probably less informative as the JSF landscape will have a number of
JSF implementation, including the reference implementation of JSF
(Mojarra) and a number of component collections. Apart from MyFaces
most component collections are backed by a single company.

Sebastian’s opinion on the framework
There is light and there is shadow. JSF 2 is a major step forward
in quite a number of areas. Navigation with GET requests is now
possible and implicit navigation as well. Implicit means that you
don’t have to create navigation rules in an XML file as before but
you can just return a string from an action method like ‘result’ and
you will navigate to the page result.xhtml .

Facelets are now the default mechanism to create pages. A facelet
page is written in xhtml format. Facelets provide a quite flexible
template model and renders faster as compared to JSP based pages. An
additional advantage is the ease to integrate custom components. You
just include the namespace of your component taglibrary and you get
autocompletion for your own components, if your IDE supports it.
The approach to handle resources like CSS, JavaScript or images is
a great feature as well. The resources are packaged into a directory
structure, which may include a locale or a version prefix like
de/css/test.css/1.1.css. This approach allows to deliver
different CSS, JavaScript or images for specific locales and in
addition you can managed different versions of a file as well. Per
default the newest version is delivered but you may define for a page
that an older version is used. I am not aware of a framework
providing the same flexibility for resource handling.
Finally, the code is very easy to understand and nice to read. The
Mojarra implementation is written by people, who knows how to code.

Let’s have a look a the dark sides.

Overall impression

JSF looks like an old castle, where every generation added pieces,
towers and buildings. I don’t blame the developers for this, as the
code shows, that they know how to do a proper job. I believe that the
reason for the current status of JSF is that the features are defined
by a specification. The specification is industry driven with a focus
on being backward compatible instead of being technology driven.
Everything works somehow but always rather complex than simple. Every
release makes it worse as nothing is dropped. I am sorry, but I can
only see a bad ending for such a strategy.
Pages are extremely verbose. Using it make you feel being
unproductive most of the time. JSF 2 brings some innovation but in a
lot of areas it doesn’t even catch up with the current status of
other frameworks. It is likely to be outdated before it is actually
stable.
I wouldn’t use it for new projects and especially not for large
enterprise projects. In my opinion, there are two use cases to choose
JSF. The first use case is a project where the development team has
only experience with JSF, you are willing to accept higher
development costs and prefer that a technology changes slowly. The
second use case is an existing application using JSF 1.x which allows
you to keep the old stuff. In that case a migration to JSF 2 is an
acceptable choice.

Being a standard

A lot of people, see the fact that JSF is standardized, an
advantage. I do not agree here for a number of reason. First of all,
even using JSF you cannot write an application which uses only
standardized technologies. The JSF spec describes mostly the request
processing, navigation and basic components but not all advanced
features. Today, basic components which mirrors HTML elements are
just not enough. As a consequence, all component providers build
their own approaches to fulfil modern requirements. Most users chose
a modern component library to implement JSF application with modern
Ajax behaviour. All advanced features were not standardized and are
not compatible across component libraries. You end up with a thin
standardized layer and the rest is a set of non standardized
components. You choose one component provider and stay with it. If
you want to switch the component collection, then you will most
likely rebuild or migrate all dialogs.
The only advantage of standardizing is to create a rich community
of competing component projects. Competition encourages innovation.
Having a closer look at the different component collections, shows
that some collections are deprecated and most popular collections are
backed by a single vendor and not by a community. The only popular
community based component collection is MyFaces. But this project
though not being already dead, suffers from extremely slow progress
and little interest. A lot of elements have not changed for ages, it
lost the status of being the best JSF implementation. In my opinion,
the standardization did not encourage a rich community but the
opposite is true. A community grow only around attractive frameworks
which provides a high value for the users.
The second problem of standardizing is that a standard is a
compromise and it progresses very slowly. A compromise does not
include very innovative or individual features and needs to ensure
that it doesn’t change vertically. Changing vertically means that it
adds more responsibility as it had before. In JSF 1.x Ajax behaviour
were not defined. Every component provider solved Ajax requirements
differently and now JSF 2 introduces its own mechanism.
There is a fair chance that components collections do collide with
the new approach and they are left with basically two choices. Either
the libraries drop backward compatibility and adapt the new JSF 2
features or they stay old fashioned and just ignore it. In the latter
case, it is hard to predict how components libraries play together
with the standard JSF 2 Ajax, in case somebody mixes both approaches.

Burden of backward compatibility

The third problem of the JSF standard is the burden of backward
compatibility. Technologies live in a triangular space and choose
between a mixture of three extremes:

• Being genius and having all future requirements already
  correctly forecasted
• Changing continuously and breaking backward compatibility
• Changing slowly and preserving backward compatibility

The first extreme is rare, the second destroys your community as
users are annoyed every time they upgrade and need to adapt to a
changing API, the third one destroys the technology as it will become
outdated, bloated and inefficient in short time.
JSF were introduced in 2004 a time Ajax were unknown. Since then
web applications has changed a lot and today we have to build complex
Ajax dialogs. A development which lead to a number of single page
technologies like GWT, Flex, Java FX etc. Still JSF preservers
backward compatibility just adding features around the existing
stuff. There are now two types of resource bundles, three types of
events and two types of components. This makes it quite hard to use
JSF correctly and becomes a burden to all new users. Community driven
frameworks are normally technology driven as well and adapt
continuously to new requirements. JSF is industry driven and is not
able to drop old stuff as there will always be a party to complain.
For JSF being a standard becomes more and more its own pitfall.

By the way, standards are not a danger by default. The EJB spec
shows that a standard can be successful and innovate at the same
time. I think the main difference between EJB and JSF is that EJB has
a defined focus which is not changing and the elements of EJB are
loosely coupled. There is a programming model and a description of
container responsibilities. The programming model could
change/innovate significantly and old and new stuff still works.
Loosely couple systems are a very important approach to be able to
innovate technologies. This is the reason, why I value technologies
like Grails, JBoss Seam or an application using the full Spring stack
extremely critical. Today they are all very innovative and powerful
but if any element of these integrated solutions doesn’t work for a
specific use case or might become deprecated, then the whole stack
looses value or becomes use less.

Components

JSF offers two types of components: composite components and the
classic ones. Composite components are introduced with JSF 2. I would
call it a snippet instead of component, which allows to render a
number of components using a single custom tag. I think that it is a
mistake to introduce a new component approach and to leave the old
heavy components which have quite a number of contracts to follow.
Composite components are of course a great help but they lack the
Java code you can use in real components and it is only a help
because writing components in JSF is very complex. Writing custom
components is frequently used to ensure a consistent look and feel in
large enterprise application. Modern frameworks like Google Web
Toolkit (GWT), Tapestry or Wicket try to make this as simple as
possible. As a consequence, it is a common and frequently task for
developers using those technologies. In JSF writing of components is
a job for experts only. In fact most people use only finished
component collections and would never write a component themselves.
In my opinion, this is one of the strongest weaknesses of JSF 1.x and
it is not fixed with JSF 2 and as the JSF interest groups are mostly
industry companies preferring backward compatibility over efficiency
and innovation we won’t even see it fixed in any JSF version.

Scopes

JSF introduces now a flash scope, a view scope and support for
custom scopes. A flash scope is important to implement proper
post-redirect-get dialogs. It is not an innovation but catches up
with a feature available in all other frameworks. I think that the
use of the flash scope could be more elegant as it is quite verbose
and different as compared to other scopes like session or request
scope. I would expect a unique approach to deal with all scopes. The
view scope is slightly useless. The reason is that it works only, if
you use the old style POST navigation approach. I think that it was
overlooked that the new links or buttons, which cause a direct
navigation using a GET request will create a new view every time.
There is no defined point in time destroying the view scope. You
might run into memory issues, if you use it incorrectly.

Making such a scope work correctly is not at all easy. The reason
is that we use state in a multi-page web application and we don’t
have full control over the user. He can use browser back and forward
and reposting, bookmark URLs he shouldn’t. Other approaches
organizing the state around a conversation id looks better on the
first look but while using them, you find out quite fast, that it is
actually very difficult to create clean borders in your web
application, which cause a conversation state to end. This is why, I
promote the idea of a window id to be sent by a browser. This would
allow a much better control about what the user is doing inside of a
window.
http://www.laliluna.de/blog/categories/ideas/

Validation

The validation can be ajaxified with the new <f:ajax>
tag. Leaving an input field will validate the input for that field.
An Ajax request is sent to the server, which causes a partial
processing of the input element. This is much better than waiting for
a form submit but could cause DOS attacks against the server. Just
press the TAB-button, let the cursor jump from input field to input
field and see how many validations per second the server can process.
In addition, the validation is always delayed. A better approach is
to do the validation directly on the client without contacting the
server. The server validation is only a fallback for security reason.
The integration of the Hibernate Validation framework (Bean
Validation spec) looked liked a great improvement on the first view.
You add annotations like @Size or @Length to a field of
the managed bean or directly in an entity bean. This allows to use
the same set of validation rules for Hibernate and for JSF. This is
pretty nice and the integration works like a charm. The problem is
actually not a problem of JSF but of Bean Validation. Somehow in the
last moment, they changed the group validation to use class name
instead of strings. Group validations are an important feature to
validate only some validations instead of all. You need it, if you
use a managed bean for multiple forms like a wizard or multi page
dialog or if you want to have different validations depending on the
use case. Now you have to use the class name everywhere. Every input
field as a group marker like the following:

 <h:inputText value="#{inputBean.address.email}">
  <f:validateBean validationGroups="de.laliluna.howto.beans.Step1"/>
</h:inputText>

Happy copy and pasting. This is another example, that following
standards can be a disadvantage. The bean validation had another
issue, which is described in the related chapter of this article.

Actually, I am waiting for a initiative of a couple of other web
frameworks to create a common validation alternative.

Dependency Injection

Most major frameworks have a Dependency Injection Container now as
core element. Such a container allows to replace, change or extent
all elements of a framework. This is a very powerful approach to open
a framework for customized extensions. JSF provides extension points
as well and allows to override default functionality but there is no
unique place. JSF elements are created by different factories or by
changing application properties where as all business services are
created by the managed bean manager. The Java Dependency Injection
specification (alias Web Beans) has the intention to improve this
situation at least to provide a unique container for managed beans,
session beans and some core elements needed by the application. From
my understanding Web Beans would not replace but only integrate the
set of existing factories. I will update this section once all the
things are available.
To summarize, the lack of a DI container as core of the framework
is a disadvantage of JSF. I assume that this is again a tribute to be
backward compatible.

Future of web frameworks

I will add this section after the Devoxx conference end of November. It is an
outlooked how component oriented frameworks could change.

Notes for JSF developers

I collected some notes, which are mostly interesting for JSF
contributors. None of the notes are critical.

The class UIViewParameter has a private rawValue field.
This makes it harder to create a sub class. In addition to the decode
method, further methods have to be implemented or copy and pasted.
The MessageFactory could be public instead of package
private to allow using it in other areas as well. Access to resource
bundles is a very common use case.
The class NavigationHandlerImpl could split out view
resolution in order to allow easier overriding. I wanted to find out,
if the view is a redirect in order to store things in the session in
that case.
It is quite hard to provide a custom FacesContext . A number
of areas access FacesContext.getCurrentInstance which by
default delivers the unwrapped default context instead of the custom
context.

Holger’s opinion

AJAX became more and more important for
web applications over the last years. With the support of AJAX in JSF
2.0 it becomes a standard, which allows other components and
libraries to build on that. This improves the compatibility.

In JSF 1.x there is Facelets as
declaration language beside JSP. With JSF 2.0 Facelets becomes the
default page language. It provides templating, alleviate the creation
of components, allows debugging and has a better performance.

Management for resources, scripts and
stylesheets was standardized in JSF 2.0. Now resources can be
overridden and internationalized.

The validation was strong improved. Now
we only have to annotate attributes with the required validation
rules. Redundant validation rules within the JSP page are not
necessary anymore.

In JSF 1.x all navigation rules needed
to be defined in the faces-config.xml. With JSF 2.0 it is possible to
drop the navigation rules and to determine the target page by the
return value of action methods. Navigation in medium application are
simplified considerably.

JSF 1.2 is the standard framework
technology in JEE5 and JSF 2.0 will be the standard in JEE6.
Therefore, there will be many users of JSF.

The community’s opinion – beautiful features and concepts

I asked the following question on the mailing list:

What
is your favourite feature or concept of JSF,
what is unique as compared to other things, what is an eye catcher?

Though I posted the
questions in three forums, I only got two feedbacks. This is an
indicator that even though the number of users are very high, there
is actually no real community being engaged in JSF. The technology is
company driven.

Here are extracts or
rephrased parts of the feedbacks:

Andy Bosch
(translated from German)
My favourite feature is the resource handling. It was quite
difficult in former JSF version especially when using Portlets.

Lincoln Baxter

1. Composite Components — The ability to create fully reusable
components with zero java code required whatsoever. This is called
“EzComp”, which has sped up my development by about 400%.

2. Built in Facelets support for Templating — never re-write
HTML, you can re-use every piece of every page if you want to.

3. Built in AJAX — specify components to submit, and components to
re-render when the request has been processed. Very easy to use, plug
& play, no javascript required (but may be used if desired.)

4. Entire pages of the site, not just components, can be packaged in
their own jar files and included in the main application. No more
massive WebContent directories.

5. Improved community
participation — We are actively seeking feedback from the community,
and trying to get as much feedback and discussion as possible in
order to make JSF2 the best possible solution it can be.

Ed Burns

Ed Burns is a core developer of the JSF reference implementation (Mojarra). He added a detailed comment in his block at <http://weblogs.java.net/blog/edburns/archive/2010/01/21/response-sebastian-hennebrueders-jsf2-evaluation-and-test-entry>

Features

Render / page technologies

The reference implementation allows to create pages using Facelets
or JSP. Facelets are pages in XHTML format, whereas JSPs are JSPs.
The recommended approach is Facelets as it is faster and supports
templates out of the box.

Developer comfort

The developer comfort is still pretty low using Mojarra JSF.
Reloading of components and managed bean still depends on the
reloading mechanism of Java in debug mode. JSF 2 has adapted an idea
from Ruby on Rails. There is a setting which defines if the
application runs in development, production or test mode. The
intention is to allow component provides to deliver a more
development friendly behaviour in case of development mode. You need
to check for the component collection of your choice how it
interprets this value.

The following is a snippet from the web.xml.

 <context-param>
        <param-name>javax.faces.PROJECT_STAGE</param-name>
        <param-value>Development</param-value>
 </context-param>


Facelet and JSP pages can of course be reloaded.

There is an issue with logging in JSF.
JSF relies on Java logging which makes it by default quite hard to
change log levels. The Howto-project provided as source shows
how to bridge the logging to log4j. This allows to use the same log4j
configuration for your application and for JSF internals. Search for
the class LogRedirect . The redirect of the logging is
integrated using a system event listener for the Startup and Shutdown
events.
Mojarra supports Groovy to implement
managed beans and components. As groovy is a dynamic language, you
can make use of reloading of changes, which improves a lot the
development speed.

Ajax support

JSF 2 provides now a number of features to support Ajax. The first
feature is so called partial rendering. Instead of rendering a full
page only a partial response is rendered which is applied to the
document.

There is a new tag <f:ajax> to add Ajax behaviour to
an existing component. The following code shows a command button
which is ajax enabled. If you click the button, then JSF will send an
Ajax request to execute the actionListener *ajaxBean.increase.

• Then it will re-render the component with the id counter .

<h:form id="formId">
  The counter value is <h:outputText value="#{ajaxBean.counter}" id="counter"/>
  <h:commandButton actionListener="#{ajaxBean.increase}" value="Ajax call">
    <f:ajax render="counter"  />
  </h:commandButton>
</h:form>

Tip: If the component to re-render is not on the same nested level as
the component sending the Ajax request, then you need to specify the
full qualified name of the component. It starts with a colon <f:ajax
render=“:counter” />

If a component is nested inside of another component, then you need
to take into consideration that JSF is prefixing the outer id to the
component id.

The following counter can be re-rendered using

 <f:ajax render=":foo:counter"/> <h:form id="foo"> <h:outputText value="#{ajaxBean.counter}" id="counter"/> </h:form>

If you disable JavaScript in your browser then the application
will fall back to the default behaviour. The button is no longer Ajax
enabled and submits the form.
The render value takes a space separated list of ids or
alternatively keywords. Keywords can have values like @form, @all,
@this, @none. @form re-renders the form which included the submit
button.

Another interesting attribute of f:ajax is execute. It sends an Ajax request and
processes the lifecycle only for the specified components. The
following code will process all the validations and re-render the
<h:messages> tag afterwards to show validation errors.

<h:inputText id="age" value="#{ajaxValidation.age}" required="true">
  <f:validateDoubleRange minimum="5" maximum="99"/>
  <f:ajax execute="age" event="blur" render="age-error"/>
</h:inputText>
<h:messages id="age-error" for="age"/>

This is quite verbose. To shorten the code you can make use of
composite components, which allows to render a number of tags by
specifying a short composite tag. Have a look in the custom component
chapter. Here is just the tag sample.

 <my:text label="Word (is required)" value="#{ajaxValidation.age}" required="true" />

The JavaScript API provided by JSF 2
allows further control over the Ajax request send to the server.

CSS and JavaScript resource handling

A final feature related to Ajax is the
option to deliver resources. Resources can be JavaScript but as well
images and stylesheets. The following tag adds the test.js to
the head section of the page.

webroot/resources/de/js/default.js/1.0.js
webroot/resources/de/js/default.js/1.1.js
webroot/resources/en/js/default.js/1.0.js

 <h:outputScript library="js" name="default.js" />

 <h:outputScript library="js" resourceVersion="1.0" name="default.js" />

  @SecurityRoles("customer-admin-adv, root")
  public String delete() {
    System.out.println("I'm a protected method!");
    return "delete-customer";
  }

 <h:link outcome="navigationTarget" value="Navigation samples"/>

 <a href="/howto/faces/navigationTarget.xhtml">Navigation samples</a>

 <h:link outcome="navigationTarget" value="Navigation samples">
  <f:param name="id" value="4711"/>
 </h:link>

 <a href="/howto/faces/navigationTarget.xhtml?id=4711">Navigation samples</a>

 <h:dataTable value="#{navigation.articles}" var="article">
  <h:column><f:facet name="Edit"/>
    <h:link outcome="navigationTarget" value="Edit #{article.id}">
      <f:param name="id" value="#{article.id}"/>
    </h:link>
  </h:column>
</h:dataTable>

 public Article getArticle(){
  ExternalContext context =
    FacesContext.getCurrentInstance().getExternalContext();
  Integer id = Integer.parseInt(context.getRequestParameterMap().get("id"));
  return articleService.findById(id);
 }

 <f:metadata>
  <f:viewParam id="id" name="id" value="#{articleBean.id}"
    required="true"
    requiredMessage="You did not specify an id. (The id parameter is missing)"
    converterMessage="Invalid id. (The id parameter is not a number)"
    validatorMessage="Invalid id. (The id parameter is not a positive number)">
    <f:validateLongRange minimum="1"/>
  </f:viewParam>
  <f:event type="preRenderView" listener="#{articleBean.load}"/>
 </f:metadata>

 <f:metadata>
  <f:viewParam id="id" name="id" value="4711"/>
 </f:metadata>

 <h:link outcome="navigationTarget" includeViewParams="true" value="Navigation with param (success)"/>

 <h:link outcome="foo" value="Navigation sample"/>

<faces-config ...>
...
<navigation-rule>
    <from-view-id>/navigation.xhtml</from-view-id>
  <navigation-case>
      <from-outcome>foo</from-outcome>
      <to-view-id>/navigationTarget.xhtml</to-view-id>
    </navigation-case>
  </navigation-rule>
</faces-config>

<h:form>
  <h:commandLink action="bar" value="Navigation with POST"/>
</h:form>

 <navigation-rule>
  <from-view-id>/navigation.xhtml</from-view-id>
  <navigation-case>
    <from-outcome>bar</from-outcome>
    <to-view-id>/navigationTarget.xhtml</to-view-id>
  </navigation-case>
 </navigation-rule>

 <navigation-case>
  <from-outcome>bar</from-outcome>
  <to-view-id>/navigationTarget.xhtml</to-view-id>
  <redirect/>
 </navigation-case>


 <h:form>
  <h:commandLink action="#{navigation.hello}" value="Navigation with redirect"/>
 </h:form>

package de.laliluna.howto.beans;
import javax.faces.bean.ManagedBean;
@ManagedBean
public class Navigation {
  public String hello() {
    System.out.print("Entering hello");
    return "success";
  }
}


 <navigation-case>
  <from-outcome>success</from-outcome>
  <to-view-id>/navigationTarget.xhtml</to-view-id>
 </navigation-case>


 <navigation-case>
  <from-action>#{navigation.hello}</from-action>
  <from-outcome>success</from-outcome>
  <to-view-id>/navigationTarget.xhtml</to-view-id>
 </navigation-case>


  http://localhost:8080/book/12345.html // as HTML
  http://localhost:8080/book/12345.pdf // as PDF
  http://localhost:8080/book/12345.xml // as XML

 <f:metadata>
  <l:urlParam from="/navigationTargetArticle/$$" value="#{articleBean.id}"/>
  <f:event type="preRenderView" listener="#{articleBean.load}"/>
 </f:metadata>

 public class FriendlyUrlViewHandler extends MultiViewHandler {}

 <faces-config ...>
  <application>
    <view-handler>de.laliluna.howto.application.FriendlyUrlViewHandler</view-handler>
  </application>
 ...


protected String derivePhysicalViewId(FacesContext ctx, String rawViewId, boolean checkPhysical) {
  if (rawViewId != null) {
    String mapping = Util.getFacesMapping(ctx);
    String viewId;
    if (mapping != null) {
      if (!Util.isPrefixMapped(mapping)) {
        viewId = convertViewId(ctx, rawViewId);
        return checkExistence(ctx, viewId);
      } else {
        List<String> possibleViewIds = analyser.analyse(rawViewId);
        if (possibleViewIds == null) {
          possibleViewIds = Arrays.asList(rawViewId);
        }
        for (String path : possibleViewIds) {
          viewId = normalizeRequestURI(path, mapping);
          if (viewId.equals(mapping)) {
            // The request was to the FacesServlet only - no
            // path info
            // on some containers this causes a recursion in the
            // RequestDispatcher and the request appears to hang.
            // If this is detected, return status 404
            send404Error(ctx);
          }
          viewId = checkExistence(ctx, viewId);
          if (viewId != null) {
            return viewId;
          }
        }
      }
    }
  }
  return rawViewId;
}


package de.laliluna.howto.components;
import com.sun.faces.util.FacesLogger;
import java.util.logging.Logger;
import java.util.regex.Matcher;
import java.util.regex.Pattern;
import javax.faces.component.UIViewParameter;
import javax.faces.context.FacesContext;
public class UIUrlParam extends UIViewParameter {
  private static final Logger logger = FacesLogger.APPLICATION.getLogger();
  private String from;
  private Pattern pattern;
  private String rawValue;
  public static final String COMPONENT_TYPE = "de.laliluna.howto.components.UrlParameter";
  public UIUrlParam() {
    super(); // will set the renderer to null, as this component is not rendered
  }

  public String getFrom() {
    return from;
  }
  public void setFrom(String from) {
    this.from = from;
    String regex = from.replace("/", "\/").replaceFirst("\$\$", "([^/]?)");
    pattern = Pattern.compile(regex);
  }
  @Override
  public void decode(FacesContext context) {
    if (context == null) {
      throw new NullPointerException();
    }
    String path = context.getExternalContext().getRequestPathInfo();
    String viewId = context.getViewRoot().getViewId();
    if (viewId.equals(path)) {
    } else {
      Matcher matcher = pattern.matcher(path);
      if (matcher.find() && matcher.groupCount() > 0) {
        String param = matcher.group(1);
        if (param != null) {
          setSubmittedValue(param);
        }
      }
    }
    rawValue = (String) getSubmittedValue();
    setValid(true);
  }
  @Override
  public String getStringValue(FacesContext context) {
    String result = null;
    if (hasValueExpression()) {
      result = getStringValueFromModel(context);
    } else {
      result = (null != rawValue) ? rawValue : (String) getValue();
    }
    return result;
  }
  private boolean hasValueExpression() {
    return null != getValueExpression("value");
  }
}


<faces-config ...>
...
<component>
    <component-type>
      de.laliluna.howto.components.UrlParameter
    </component-type>
    <component-class>
      de.laliluna.howto.components.UIUrlParam
    </component-class>
  </component>
</faces-config>


<!DOCTYPE facelet-taglib PUBLIC
  "-//Sun Microsystems, Inc.//DTD Facelet Taglib 1.0//EN"
  "http://java.sun.com/dtd/facelet-taglib_1_0.dtd">
<facelet-taglib>
  <namespace>http://www.laliluna.de/components/sample</namespace>
  <tag>
    <tag-name>urlParam</tag-name>
    <component>
      <component-type>de.laliluna.howto.components.UrlParameter</component-type>
    </component>
  </tag>
</facelet-taglib>


 <?xml version='1.0' encoding='UTF-8' ?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:ui="http://java.sun.com/jsf/facelets"
      xmlns:h="http://java.sun.com/jsf/html">
  <h:head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
    <title>Facelets - Template Example</title>
  </h:head>
  <h:outputStylesheet library="css" name="default.css"/>
  <body>
    <h1>
      <ui:insert name="title">Howto Samples</ui:insert>
    </h1>
    <h:link outcome="home" value="Back to Home Page"/>
      <p>
        <ui:insert name="body">Welcome</ui:insert>
      </p>
  </body>
</html>

<?xml version='1.0' encoding='UTF-8' ?>
<body xmlns="http://www.w3.org/1999/xhtml"
      xmlns:ui="http://java.sun.com/jsf/facelets"
      xmlns:h="http://java.sun.com/jsf/html"
      xmlns:f="http://java.sun.com/jsf/core">
<ui:composition template="/template.xhtml">
  <ui:define name="title">
    Ajax Samples
  </ui:define>
  <ui:define name="body">
    <div>#{ajaxBean.time}</div>
  </ui:define>
</ui:composition>
</body>


<ui:decorate template="/layout.xhtml">
  <ui:define name="content">
  Foo bar
  </ui:define>
</ui:decorate>
.. more page


<ui:decorate template="templatePart#{facesContext.viewRoot.locale}.xhtml">
  <ui:define name="titel">The legend</ui:define>
  <ui:define name="content">Content of the fieldset</ui:define>
</ui:decorate>


<h:form>
  <h:inputText id="name" value="#{inputBean.name}"/>
  <h:commandButton actionListener="#{inputBean.save}" value="Save"/>
</h:form>


@ManagedBean @RequestScoped
public class InputBean {
  private String name;

  public String getName() {
    return name;
  }
  public void setName(String name) {
    this.name = name;
  }
...
}

<h:form>
  <h:inputText id="name" value="#{inputBean.address.name}"/>
  <h:commandButton actionListener="#{inputBean.save}" value="Save"/>
</h:form>


 public InputBean() {
  address = new Address();
 }


<h:inputText id="name" value="#{inputBean.address.name}" required="true">
  <f:validateLength minimum="3" maximum="6" />
</h:inputText>


import javax.validation.constraints.NotNull;
import javax.validation.constraints.Size;
import java.util.Date;
public class Address {
  private Integer id;

  @NotNull
  private String name;

  @NotNull @Size(min = 2, max = 10)
  private String street;

@ManagedBean @RequestScoped
public class InputBean {

  private Address address;

  public InputBean() {
    address = new Address();
  }
  public Address getAddress() {
    return address;
  }
  public void setAddress(Address address) {
    this.address = address;
  }
  ...
}

<h:inputText id="email" value="#{inputBean.address.email}">
  <f:validateBean validationGroups="de.laliluna.InputBeanEmailValidation"/>
</h:inputText>


@NotNull(groups = {InputBeanEmailValidation.class})
private String email;

@FacesValidator("companyEmail")
public class CompanyEmailValidator implements Validator {
  public static final String VALIDATOR_ID = "companyEmail";

  public void validate(FacesContext facesContext, UIComponent uiComponent, Object value) throws ValidatorException {
    String email = (String) value;
    if (email != null) {
      email = email.toLowerCase();
      if (email.endsWith("@laliluna.de"))
        return;
    }
    throw new ValidatorException(MessageFactory.getMessage(facesContext, "validation_company_email"));
  }
}

<h:inputText id="email" value="#{inputBean.address.email}">
  <f:validator validatorId="companyEmail"/>
</h:inputText>


 <validator>
  <validator-id>companyEmail</validator-id>
  <validator-class>de.laliluna.howto.components.CompanyEmailValidator</validator-class>
 </validator>

@Target({METHOD, FIELD, ANNOTATION_TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Constraint(validatedBy = CompanyEmailValidator2.class)
@Documented
public @interface CompanyEmail {
  String message() default "{de.laliluna.howto.components.validation.companyemail}";

  Class<?>[] groups() default {};

  Class<? extends Payload>[] payload() default {};
}

public class CompanyEmailValidator2 implements ConstraintValidator<CompanyEmail,String>{
  public void initialize(CompanyEmail constraintAnnotation) {
  }
  public boolean isValid(String value, ConstraintValidatorContext context) {
    if(value == null) // assume that the user uses @NotNull to validate not null
    return true;
    value = value.toLowerCase();
    return value.endsWith("@laliluna.de");
  }
}

<h:inputText id="from" value="#{inputBeanCross.from}" binding="#{inputBeanCross.fromInput}"/>
<h:inputText id="to" value="#{inputBeanCross.to}" validator="#{inputBeanCross.validateMe}"/>


public class InputBeanCross {
  private Date from;
  // binding for the from input to access the value before it is written to the from field
  private UIInput fromInput;
  private Date to;

  public void validateMe(FacesContext context, UIComponent component, Object value) throws ValidatorException  {
    if(value==null)
      return;
    Date fromDate = (Date) fromInput.getValue();
    Date toDate = (Date) value;
      if (fromDate == null) {
      FacesMessage message = MessageFactory.getMessage(context, "validation_from_null");
      // add the error message to the from field
      context.addMessage(fromInput.getClientId(context), message);
      fromInput.setValid(false);
      // add the error message to the to field
      throw new ValidatorException(message);
    }
    if (toDate.before(fromDate)){
      FacesMessage message = MessageFactory.getMessage(context, "validation_from_to");
      // add the error message to the from field
      context.addMessage(fromInput.getClientId(context), message);
      fromInput.setValid(false);
      // add the error message to the to field
      throw new ValidatorException(message);
    }
  }


context.addMessage(fromInput.getClientId(context), message);
fromInput.setValid(false);


<h:inputText id="from" value="#{inputBeanCross.from}"
  <f:convertDateTime dateStyle="short" type="date"/>
</h:inputText>


<h:outputText value="#{inputBean.sampleDate}">
  <f:convertDateTime dateStyle="short" type="date"/>
</h:outputText>

@FacesConverter(forClass = Phone.class)
public class PhoneConverter implements Converter {
  /**
   * Actually obsolete as we registered the converter in the faces-config by type
   */
  public static final String CONVERTER_ID = "de.laliluna.Phone";
  public Object getAsObject(FacesContext facesContext, UIComponent uiComponent, String rawValue) {
    Phone phone = null;
    if (rawValue != null && rawValue.length()>0) {
      String parts[] = rawValue.split("/");
      if (parts.length != 3)
        throw new ConverterException(MessageFactory.getMessage(facesContext,
            "phoneconverter-bad-string", new Phone("49", "123", "456789")));
      phone = new Phone(parts[0], parts[1], parts[2]);
    }
    return phone;
  }
  public String getAsString(FacesContext facesContext, UIComponent uiComponent, Object value) {
    // We are friendly and return at least an empty String
    String stringValue = "";
    if (value != null) {
      // Default components check if the value is a String and return it as it is
      if (value instanceof String)
        stringValue = (String) value;
      else if (value instanceof Phone) {
        Phone phoneValue = (Phone) value;
        stringValue = String.format("%s/%s/%s", phoneValue.getCountryCode(), phoneValue.getAreaPrefix(),
            phoneValue.getCode());
      } else
        throw new ConverterException(MessageFactory.getMessage(facesContext,"phoneconverter-bad-phone"));
    }
    return stringValue;
  }
}


<converter>
  <converter-for-class>de.laliluna.howto.model.Phone</converter-for-class>
  <converter-class>de.laliluna.howto.components.PhoneConverter</converter-class>
</converter>


@FacesConverter(value ="phoneConverter")
public class PhoneConverter implements Converter {


<converter>
  <converter-id>phoneConverter</converter-id>
  <converter-class>de.laliluna.howto.components.PhoneConverter</converter-class>
</converter>


<ui:repeat var="item" value="#{inputBeanCross.articles}">
  <div><h:outputText value="#{item.name}"/></div>
</ui:repeat>


<h:inputText value="#{inputBean.address.phone}" rendered="#{inputBean.address.hasPhone}"/>

<?xml version='1.0' encoding='UTF-8' ?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:ui="http://java.sun.com/jsf/facelets"
      xmlns:h="http://java.sun.com/jsf/html">
  <h:head>
    <title>Facelets - Template Example</title>
  </h:head>
  <body>
<f:metadata>
  <f:viewParam id="id" name="sortCriteria" value="#{ajaxTable.sortCriteria}"/>
</f:metadata>
<h:form>
  <h:dataTable id="table" value="#{ajaxTable.articles}" var="a">
    <h:column>
      <f:facet name="header">
        <h:commandLink actionListener="#{ajaxTable.sort}" value="Id">
          <f:ajax render="table"/><f:param name="sortCriteria" value="id"/>
        </h:commandLink>
      </f:facet>
      <h:outputText value="#{a.id}"/>
    </h:column>
  </h:dataTable>
</h:form>
</body>
</html>


<h:commandLink actionListener="#{ajaxTable.sort('id')}" value="Id">
  <f:ajax render="table"/><f:param name="sortCriteria" value="id"/>
</h:commandLink>


public class AjaxTable {
  public AjaxTable() {
    editArticles =  ServiceFactoryImp.getInstance().getService(ArticleService.class).findAll();
  }

  public List<Article> getEditArticles() {
    return editArticles;
  }

  public String save() {
    ArticleService service =
        ServiceFactoryImp.getInstance().getService(ArticleService.class);
    for (Article article : editArticles) {
      logger.debug("Create or update {}", article);
      service.update(article);
    }
    return "ajaxTable?faces-redirect=true";
  }
...


<h:form>
  <h:dataTable id="table" value="#{ajaxTable.editArticles}" var="a">
    <h:column>
      <f:facet name="header">
        Id
      </f:facet>
      <h:outputText value="#{a.id}"/>
    </h:column>
    <h:column>
      <f:facet name="header">
          Name
      </f:facet>
      <h:inputText id="name" value="#{a.name}"/>
      <h:message for="name"/>
    </h:column>
    <h:column>
      <f:facet name="header">
        Description
      </f:facet>
      <h:inputTextarea rows="3" cols="40" value="#{a.description}"/>
    </h:column>
  </h:dataTable>
  <h:commandButton value="Save" action="#{ajaxTable.save}"/>
</h:form>


<resource-bundle>
  <base-name>de.laliluna.howto.messages</base-name>
  <var>m</var>
</resource-bundle>


#{text.bar}
<h:outputLabel for="foo" value="#{text.bar}"/>

<h:outputFormat value="#{text.notfound}">
  <f:param value="#{text.user}"/>
</h:outputFormat>

public String getHello(){
  FacesContext context = FacesContext.getCurrentInstance();
  ResourceBundle bundle = context.getApplication().getResourceBundle(context, "m");
  return bundle.getString("hello");
}


public String getGoodBye(){
  FacesContext context = FacesContext.getCurrentInstance();
  ResourceBundle bundle = ResourceBundle.getBundle("de.laliluna.howto.anotherbundle", context.getViewRoot().getLocale());
  return bundle.getString("goodbye");
}


<faces-config ...>
  <application>
   <locale-config>
    <default-locale>en</default-locale>
    <supported-locale>de</supported-locale>
  </locale-config>


<f:view locale="en">
<f:view locale="#{userBean.locale}">


public void beforePhase(PhaseEvent phaseEvent) {
  FacesContext context = phaseEvent.getFacesContext();
  Application application = context.getApplication();
  ExpressionFactory factory = application.getExpressionFactory();
  ValueExpression valueExpression = factory.createValueExpression(context.getELContext(),
      "#{userBean}", UserBean.class);
  UserBean userBean = (UserBean) valueExpression.getValue(context.getELContext());
  context.getViewRoot().setLocale(userBean.getLocale());
}

<faces-config ...>
  <application>
   ...
   <message-bundle>
     de.laliluna.howto.customerrors
   </message-bundle>

<error-page>
  <exception-type>java.lang.IllegalArgumentException</exception-type>
  <location>/faces/error.xhtml</location>
</error-page>


<h2>You have encountered a system error</h2>
The error message is: #{requestScope['javax.servlet.error.message']}<br>
Below are informations for the system administrators <br>
<textarea rows="20" cols="80" disabled="true"><h:outputText escape="false" value="#{errorBean.stackTrace}"/></textarea>


@ManagedBean
public class ErrorBean {
  private static final String BR = "n";

  public String getStackTrace(){
    FacesContext context = FacesContext.getCurrentInstance();
    Map<String,Object> map = context.getExternalContext().getRequestMap();
    Throwable throwable = (Throwable) map.get("javax.servlet.error.exception");
    StringBuilder builder = new StringBuilder();
    builder.append(throwable.getMessage()).append(BR);
    for (StackTraceElement element : throwable.getStackTrace()) {
      builder.append(element).append(BR);
    }
    return builder.toString();
  }
}

<faces-config ...>
 <factory>
  <exception-handler-factory>
    de.laliluna.howto.application.CustomExceptionHandlerFactory
  </exception-handler-factory>
 </factory>


public void handle() throws FacesException {
  Iterator<ExceptionQueuedEvent> iterator = getUnhandledExceptionQueuedEvents().iterator();
  while (iterator.hasNext()) {
    ExceptionQueuedEvent event = iterator.next();
    ExceptionQueuedEventContext context = (ExceptionQueuedEventContext) event.getSource();
    if (context.getException() instanceof ViewExpiredException) {
      ViewExpiredException exception =
        (ViewExpiredException) context.getException();
      FacesContext fc = FacesContext.getCurrentInstance();
      Map<String, Object> requestMap = fc.getExternalContext().getRequestMap();
      NavigationHandler nav =
          fc.getApplication().getNavigationHandler();
      try {
        // in development mode, we want to show the normal debug screen of facelets
        if(fc.isProjectStage(ProjectStage.Development)){
          fc.getExternalContext().getRequestMap()
            .put("com.sun.faces.error.view", fc.getViewRoot());
          throw new FacesException(context.getException().getMessage(),
             context.getException());
        } else{
        // Push some useful stuff to the request scope for
        // use in the page
        requestMap.put("currentViewId", exception.getViewId());
        nav.handleNavigation(fc, null, "viewexpired");
        fc.renderResponse();
        }
      } finally {
        iterator.remove();
      }
    }
  }
  super.handle();
}


public String save(){
  FacesContext context = FacesContext.getCurrentInstance();
  context.getExternalContext().getFlash().setKeepMessages(true);
  context.addMessage(null, new FacesMessage("The name was successfully saved "));
  return "article?faces-redirect=true";
}


 private WizardScope getScope(ELContext elContext) {
  CustomFacesContext ctx = CustomFacesContext.getCurrent();
  HttpSession session = (HttpSession) ctx.getExternalContext().getSession(true);
  WizardScopeResolver.WizardScope wizardScope = null;

  synchronized (session.getId()) {
    Map<String, WizardScope> scopes = (Map<String, WizardScopeResolver.WizardScope>) session.getAttribute(
      WizardHelper.WIZARD_SCOPE_KEY);
    if (scopes == null) {
      scopes = new HashMap<String, WizardScope>();
      wizardScope = new WizardScopeResolver.WizardScope();
      scopes.put(ctx.getWizardId(), wizardScope);
      logger.debug("Created wizard scope with id ({})", ctx.getWizardId());
      session.setAttribute(WizardHelper.WIZARD_SCOPE_KEY, scopes);
    } else {
      wizardScope = scopes.get(ctx.getWizardId());
      if (wizardScope == null) {
        wizardScope = new WizardScopeResolver.WizardScope();
        scopes.put(ctx.getWizardId(), wizardScope);
        logger.debug("Created wizard scope with id ({})", ctx.getWizardId());
      }
    }
  }
  return wizardScope;
 }
 public Object getValue(ELContext elContext, Object base, Object property) {
  if (property == null) {
    throw new PropertyNotFoundException("Could not resolve property, as property name is null");
  }
  if (base == null) {
    if (SCOPE_NAME.equals(property.toString())) {
      elContext.setPropertyResolved(true);
      return getScope(elContext);
    } else {
      return lookup(elContext, getScope(elContext), property.toString());
    }
  } else if (base instanceof WizardScope) {
      return lookup(elContext, (WizardScope) base, property.toString());
  }
  return null;
 }

<faces-config...>
  <application>
    <el-resolver>de.laliluna.howto.application.WizardScopeResolver</el-resolver>

@ManagedBean
@CustomScoped("#{wizardScope}")
public class WizardBean {}

@ManagedBean @ApplicationScoped
public class WizardHelper {
  public static final String WIZARD_SCOPE_KEY = "de.laliluna.WizardScope";
  private AtomicLong wizardId = new AtomicLong();
  public void start() {
    CustomFacesContext context = CustomFacesContext.getCurrent();
    context.setWizardId(String.valueOf(wizardId.incrementAndGet()));
  }
  public void end() {
    CustomFacesContext context = CustomFacesContext.getCurrent();
    WizardScopeResolver.destroyScope(context);
    context.setWizardId(null);
  }
  public <T> T get(String key) {
    return (T) getOrCreateScope().get(key);
  }
  public void put(String key, Object value) {
    getOrCreateScope().put(key, value);
  }
...

public class CustomFacesContext extends FacesContextWrapper{
  private String wizardId;

  private FacesContext wrapped;

  public CustomFacesContext(FacesContext wrapped) {
    this.wrapped = wrapped;
    contextThreadLocal.set(this);
  }
  public static CustomFacesContext getCurrentInstance(){
    return contextThreadLocal.get();
  }
  @Override
  public void release() {
    this.wizardId = null;
    contextThreadLocal.set(null);
    contextThreadLocal.remove();
    super.release();
  }
  public boolean isWizardEnabled(){
    return wizardId != null;
  }
  public String getWizardId() {
    return wizardId;
  }
  public void setWizardId(String wizardId) {
    this.wizardId = wizardId;
  }
...
}

<faces-config...>
<application>
...
<factory>
  <faces-context-factory>
    de.laliluna.howto.application.CustomFacesContextFactory
  </faces-context-factory>
</factory>


<h:form>
  <l:wizardId/>
  Age: <h:inputText value="#{wizardBean.age}"/>
  <h:commandButton action="#{wizardBean.finish}" value="Finish"/>
</h:form>


public class WizardId extends UIInput {
  @Override
  public void encodeBegin(FacesContext context) throws IOException {
    ResponseWriter writer = context.getResponseWriter();
    assert (writer != null);
    writer.startElement("input", this);
    writer.writeAttribute("type", "hidden", "type");
    String clientId = getClientId(context);
    writer.writeAttribute("name", clientId, "clientId");
    // render default text specified
    CustomFacesContext customContext = (CustomFacesContext) context;
    if (customContext.isWizardEnabled()) {
      writer.writeAttribute("value", customContext.getWizardId(), null);
    }
    writer.endElement("input");
  }
  @Override
  public void encodeEnd(FacesContext context) throws IOException {
  }
  @Override
  public void decode(FacesContext context) {
// let the default implementation extract the value and store it in the submitted
//value field
    super.decode(context);
    CustomFacesContext customContext = (CustomFacesContext) context;
    Object value = getSubmittedValue();
    if (value != null) {
      customContext.setWizardId(value.toString());
    }
  }
}


...
if (caseStruct.navCase.isRedirect()) {
  CustomFacesContext customFacesContext = CustomFacesContext.getCurrentInstance();
  if(customFacesContext.isWizardEnabled()){
  extContext.getSessionMap().put(Globals.WIZARD_SESSION_KEY,
    customFacesContext.getWizardId());
}


public void beforePhase(PhaseEvent event) {
  // restore a wizard id
  if (event.getFacesContext() instanceof CustomFacesContext) {
    CustomFacesContext context = (CustomFacesContext) event.getFacesContext();
  String key = (String) context.getExternalContext()
      .getSessionMap().remove(Globals.WIZARD_SESSION_KEY);
  if (key != null) {
    context.setWizardId(key);
  }
}


<div>
<h:outputLabel value="Word (is required)"/>
  <h:inputText id="input" value="components.word" required="true">
    <f:ajax execute="input" event="blur" render="input-error"/>
  </h:inputText>
  <h:messages id="input-error" for="input"/>
</div>


<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
    "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:h="http://java.sun.com/jsf/html"
      xmlns:f="http://java.sun.com/jsf/core"
      xmlns:my="http://java.sun.com/jsf/composite/sample">
<head>
  <title>This will not be present in rendered output</title>
</head>
<body>
<h:form>
      <my:text label="Word (is required)" value="#{components.word}" required="true" />
      <my:text label="Age (between 5 and 99)" value="#{components.age}" required="true" >
        <f:validateDoubleRange for="input" minimum="5" maximum="99"/>
      </my:text>
      <h:commandButton value="Submit"/>
    </h:form>
</body>
</html>


<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
    "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:h="http://java.sun.com/jsf/html"
      xmlns:f="http://java.sun.com/jsf/core"
      xmlns:composite="http://java.sun.com/jsf/composite">
<head>
  <title>This will not be present in rendered output</title>
</head>
<body>
<composite:interface>
  <composite:attribute name="label" required="true"/>
  <composite:attribute name="value" required="true"/>
  <composite:attribute name="required" required="false"/>
  <composite:editableValueHolder name="input"/>
</composite:interface>
<composite:implementation>
  <h:outputLabel value="#{cc.attrs.label}"/>
  <h:inputText id="input" value="#{cc.attrs.value}" required="#{cc.attrs.required}">
    <f:ajax execute="input" event="blur" render="input-error"/>
  </h:inputText>
  <h:messages id="input-error" for="input"/>
</composite:implementation>
</body>
</html>


package de.laliluna.howto.components;
import javax.faces.component.UIComponentBase;
import javax.faces.component.FacesComponent;
import javax.faces.context.FacesContext;
import javax.faces.context.ResponseWriter;
import java.io.IOException;
@FacesComponent("de.laliluna.howto.components.MySampleComponent")
public class MySampleComponent extends UIComponentBase{
  public String getFamily() {
    return "de.laliluna.sample";
  }
  @Override
  public void encodeBegin(FacesContext context) throws IOException {
    ResponseWriter writer = context.getResponseWriter();
    writer.startElement("div", null);
    writer.write("hello");
    writer.endElement("div");
  }
}


 <component>
     <component-type>de.laliluna.howto.components.MySampleComponent</component-type>
     <component-class>de.laliluna.howto.components.MySampleComponent</component-class>
   </component>
</faces-config>


<faces-config ...  metadata-complete="true">

<!DOCTYPE facelet-taglib PUBLIC
  "-//Sun Microsystems, Inc.//DTD Facelet Taglib 1.0//EN"
  "http://java.sun.com/dtd/facelet-taglib_1_0.dtd">
<facelet-taglib>
  <namespace>http://www.laliluna.de/components/sample</namespace>
  <tag>
    <tag-name>hello</tag-name>
    <component>
      <component-type>de.laliluna.howto.components.MySampleComponent</component-type>
    </component>
  </tag>
</facelet-taglib>


<context-param>
  <param-name>javax.faces.FACELETS_LIBRARIES</param-name>
  <param-value>/WEB-INF/sample-components.taglib.xml</param-value>
</context-param>


home.xhtml
index.jsp
template.xhtml
WEB-INF/classes/de/laliluna/howto/beans/ArticleBean.class
WEB-INF/classes/de/laliluna/howto/model/Article.class
WEB-INF/classes/de/laliluna/howto/services/ArticleService.class
WEB-INF/classes/de/laliluna/howto/services/ArticleServiceImpl.class
WEB-INF/classes/de/laliluna/howto/services/ServiceFactory.class
WEB-INF/classes/de/laliluna/howto/services/ServiceFactoryImp.class
WEB-INF/faces-config.xml
WEB-INF/lib/components.jar
WEB-INF/web.xml

META-INF/MANIFEST.MF
META-INF/faces-config.xml
META-INF/sample-components.tld
META-INF/sample-components.taglib.xml
de/laliluna/howto/components/MySampleComponent.class
